Bosch GCM12SD Axial-Glide Installation

In addition to the installation instructions these steps are provided to give you a visual idea of how the installation will look.

1. Install the B-25 on the back of the middle guard as shown in the picture with the thick end of the wedge that is on the bracket down.The bracket should be about even with the cutout in the side of the guard. When the laser is o the bracket it sho… — 1. Install the B-25 on the back of the middle guard as shown in the picture with the thick end of the wedge that is on the bracket down.
The bracket should be about even with the cutout in the side of the guard. When the laser is o the bracket it should not hit the dust chute when the saw is in the down position.

2. Follow the installation instruction to properly install and align the laser. Your installation should look like the pictures below.

2. Follow the installation instruction to properly install and align the laser. Your installation should look like the pictures below.

2. Follow the installation instruction to properly install and align the laser. Your installation should look like the pictures below.

3. Install the switch as shown.

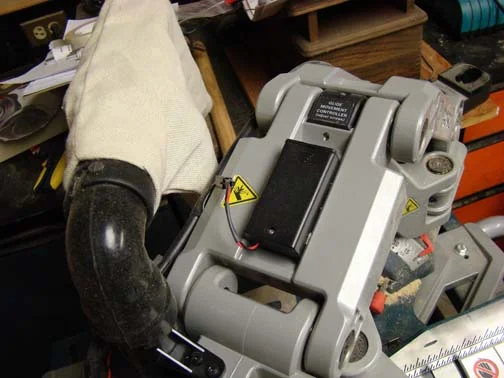

4. Install a wire clip on the top of the the saw near the battery box as shown to hold the power lead and install the battery box as shown.5. To install the transformer for AC power apply a wire ties to hold the transformer wire to the power co… — 4. Install a wire clip on the top of the the saw near the battery box as shown to hold the power lead and install the battery box as shown.
5. To install the transformer for AC power apply a wire ties to hold the transformer wire to the power cord along the top of the saw. Then connect the transformer to the power lead
